Phoenix, Arizona
Correcting an Improper Spring Installation & Motor Failure
Completed
August 6, 2026
Location
Phoenix
Project Type
Garage Door Spring Replacement
The Challenge
Undersized Springs, Overworked Opener

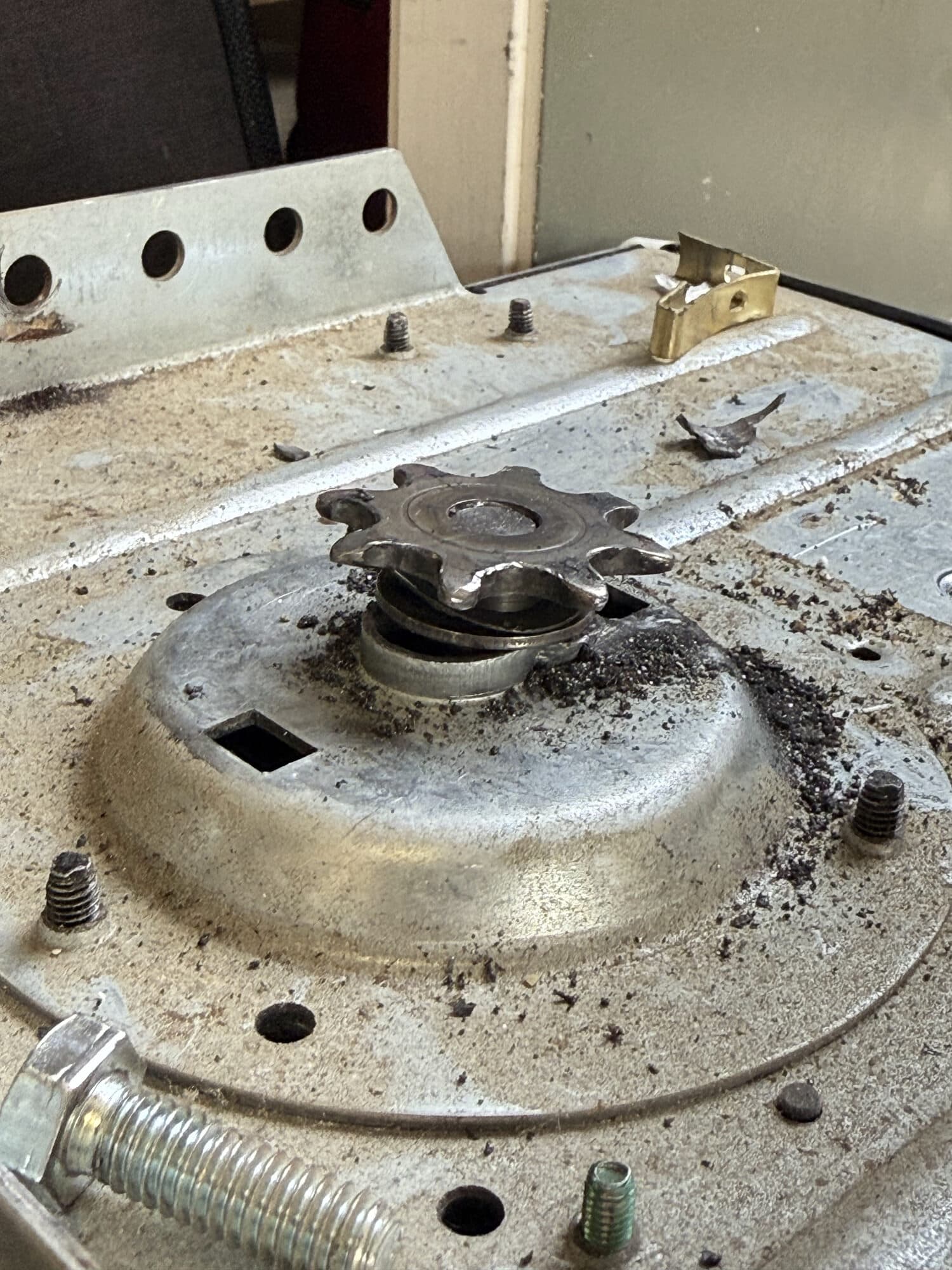

The homeowner's garage door opener had failed, and they called us to install a new one. But the opener wasn't the root problem — the door had been set up with two undersized springs, making it far too heavy and forcing the motor to do the lifting. That added strain wore the opener out; you could see metal shavings ground off the chain drive sitting right on top of the motor.
Our Solution
The Right-Size Springs

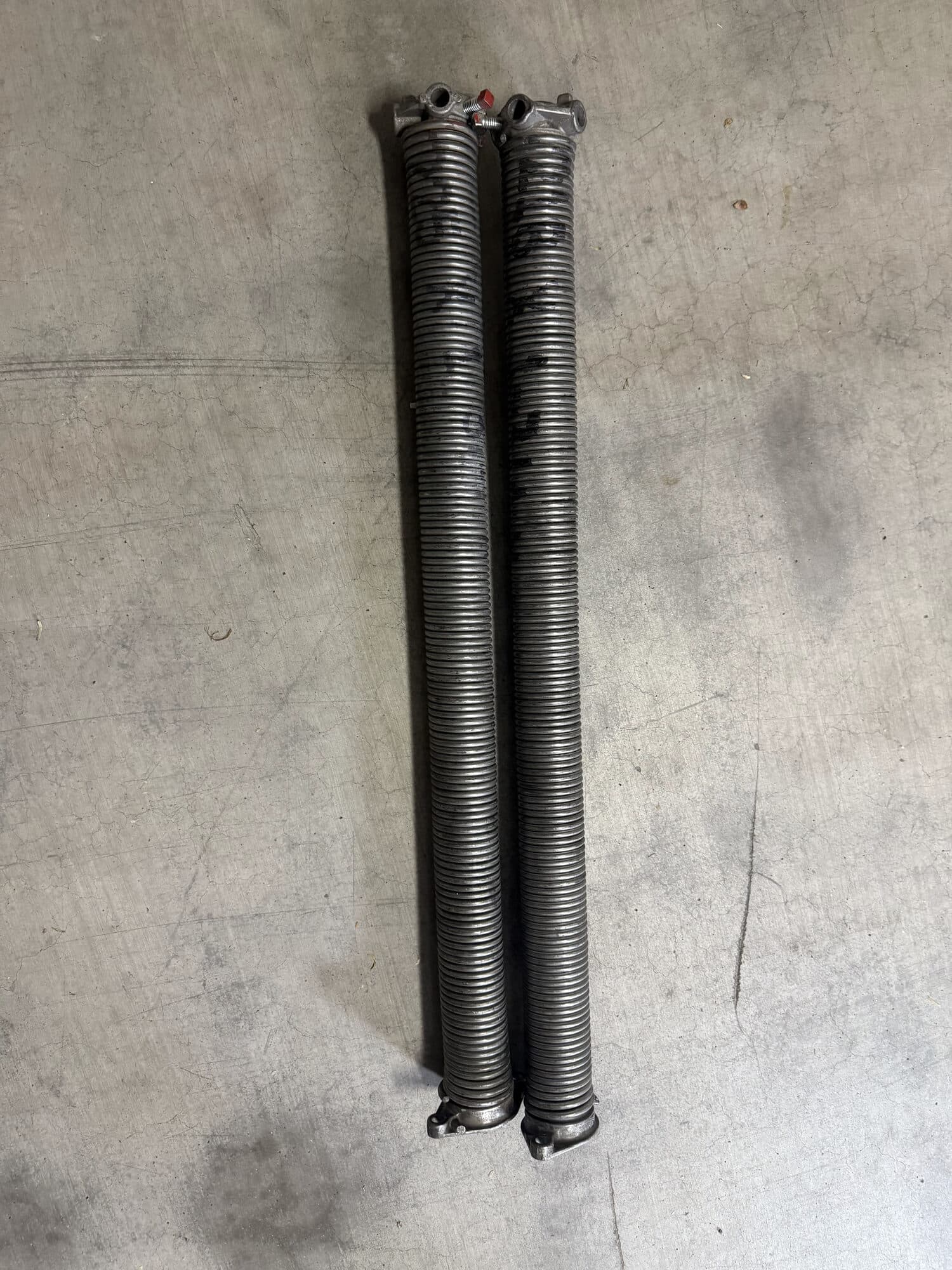

One of the most common mistakes we see is the wrong-size springs. This door had a .218 and a .225 × 1¾ × 29 spring — both undersized — so the opener had to do most of the lifting, which eventually caused it to fail. We weighed the door to find the correct size: a matched pair of .250 × 1¾ × 39 springs. Once we installed them, the door was properly balanced again, so the opener can do what it's designed to do — guide the door, not lift it.
The Result
Balanced Door, Protected Opener

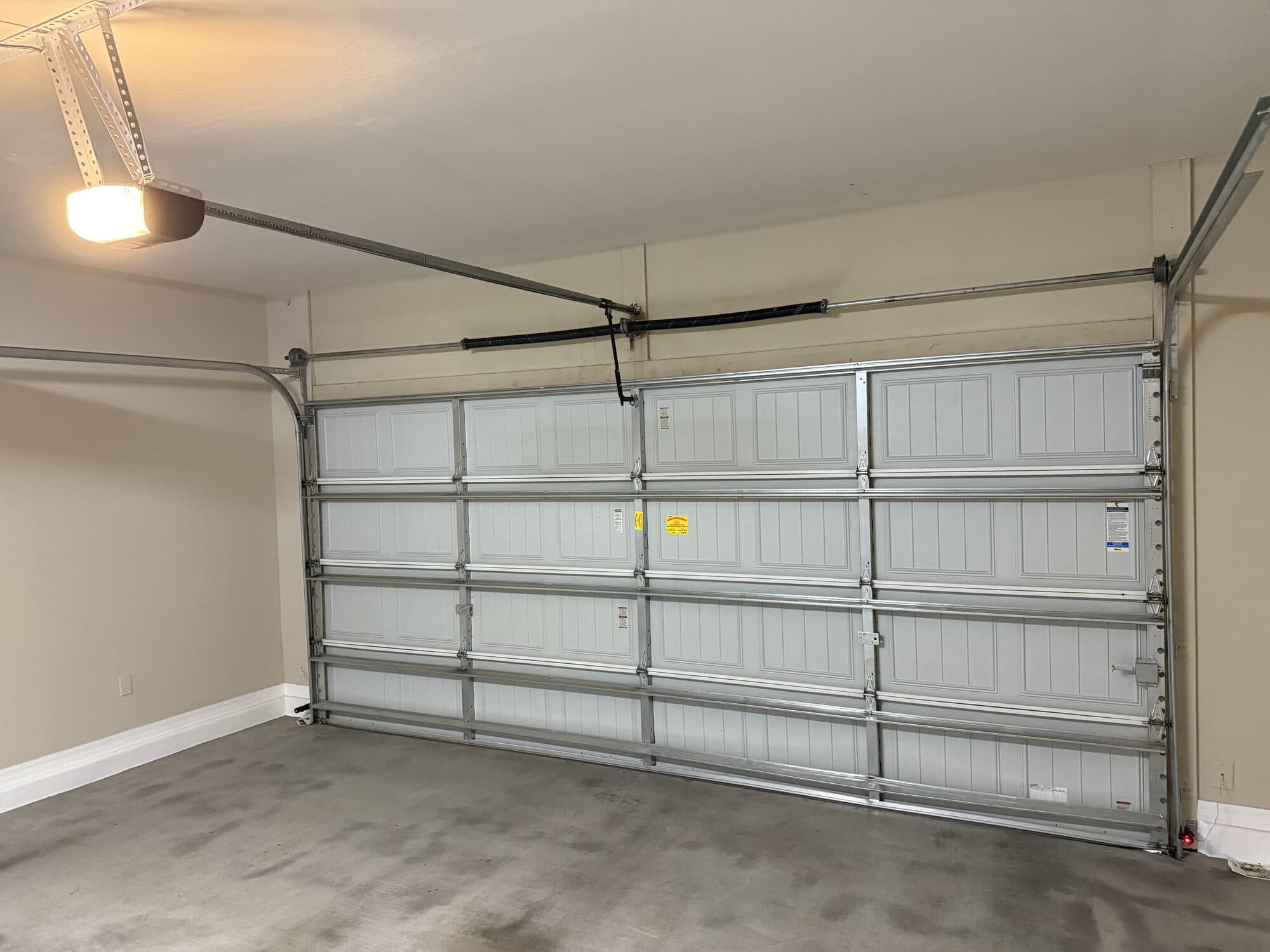

With the correctly-sized springs installed, the door is properly balanced for the first time — light, smooth, and safe to operate. The new opener now only has to guide the door, which protects it from the same early failure and extends the life of the whole system.
- Door weighed and matched to the correct spring size
- New .250 × 1¾ × 39 torsion springs installed
- Door properly balanced — light and smooth again
- Opener protected from the strain that killed the last one
- Longer life for the entire door system
Project Videos
What We Completed
- Garage Door Weigh & Spring Sizing
- Correctly-Sized Torsion Spring Installation
- New Garage Door Opener Installation
- Door Balancing & Adjustment
- Full Safety & Operation Test
Project Details
- Service
- Torsion Spring Replacement
- Old Springs
- .218 & .225 × 1¾ × 29 (undersized)
- New Springs
- .250 × 1¾ × 39 (correct)
- Root Cause
- Wrong-size springs
Project Gallery
See More From This Project
A closer look at the transformation, details, and quality craftsmanship.
More Projects
Check Out Some of Our Recent Work

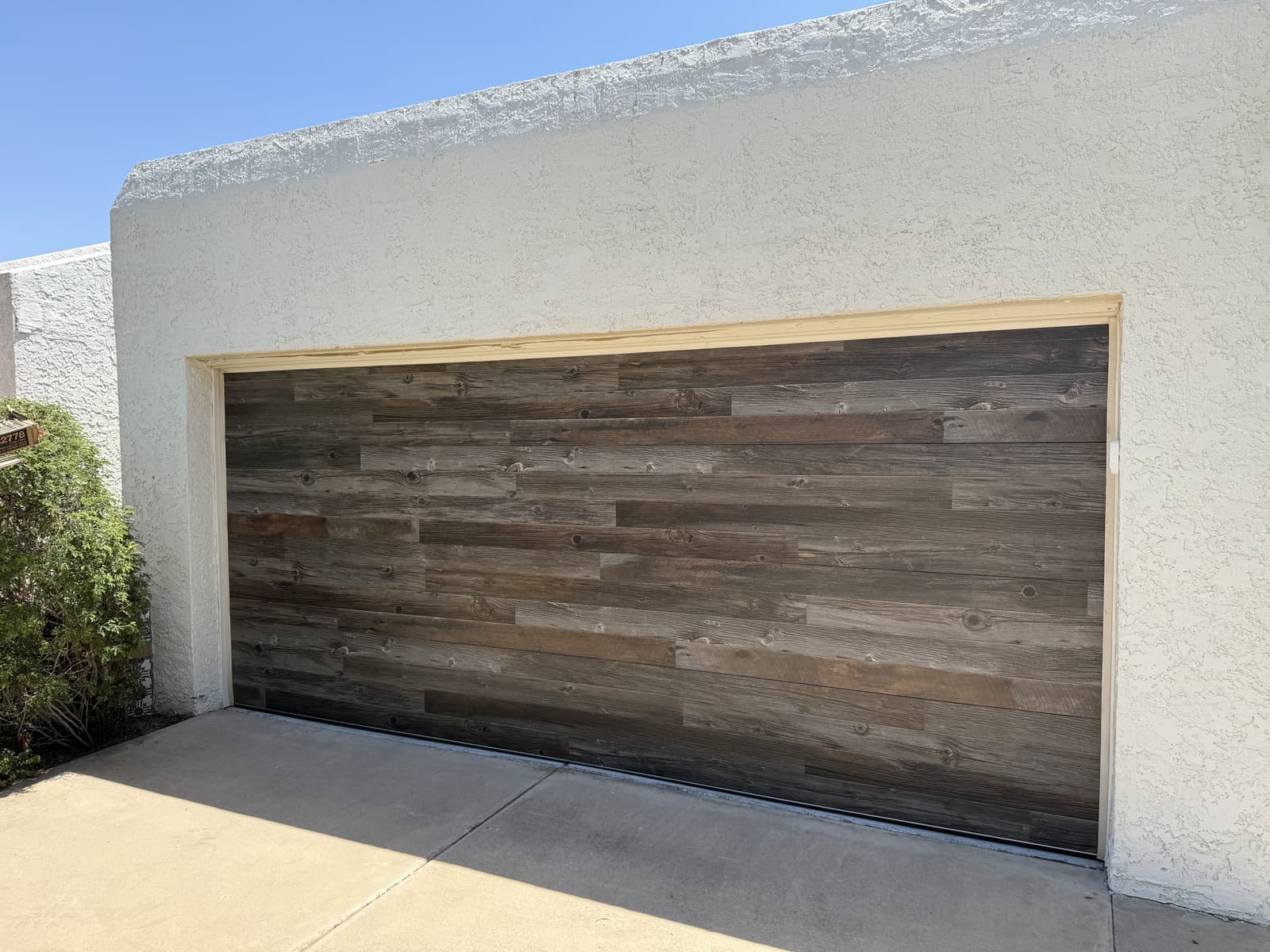

Modern Wood-Look Garage Door in Scottsdale
A brand-new Scottsdale home came with a plain builder-grade door. We swapped it for a Clopay barnwood wood-look door and a quiet smart opener — a garage door installation in Scottsdale that lifts the whole front of the house.
View project to see details

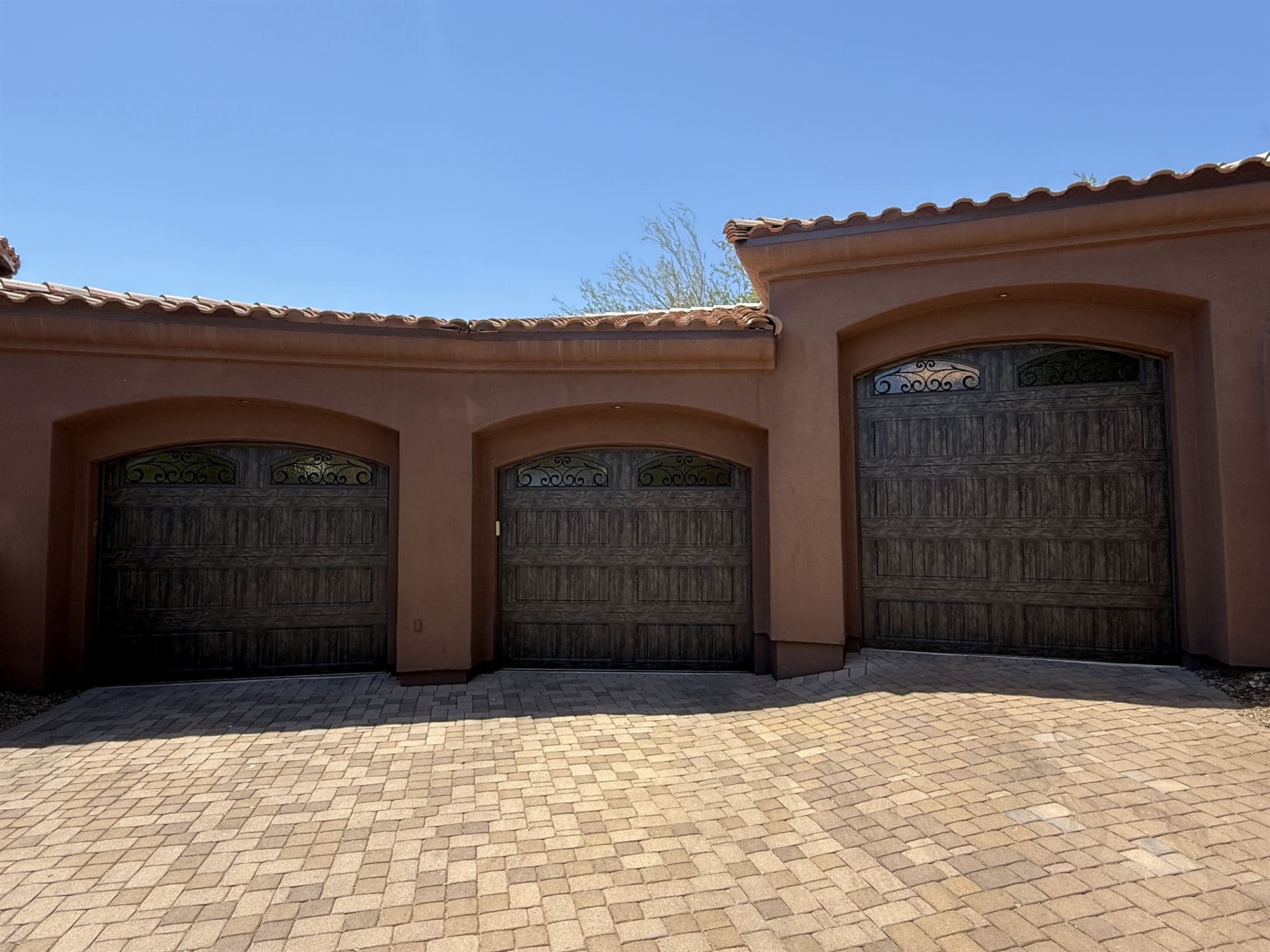

Triple Wood-Look Door Upgrade in Fountain Hills
Three weathered wooden doors, one already damaged, replaced with Clopay wood-look carriage doors and arched iron glass — a garage door installation in Fountain Hills that fits the home's Tuscan look.
View project to see details

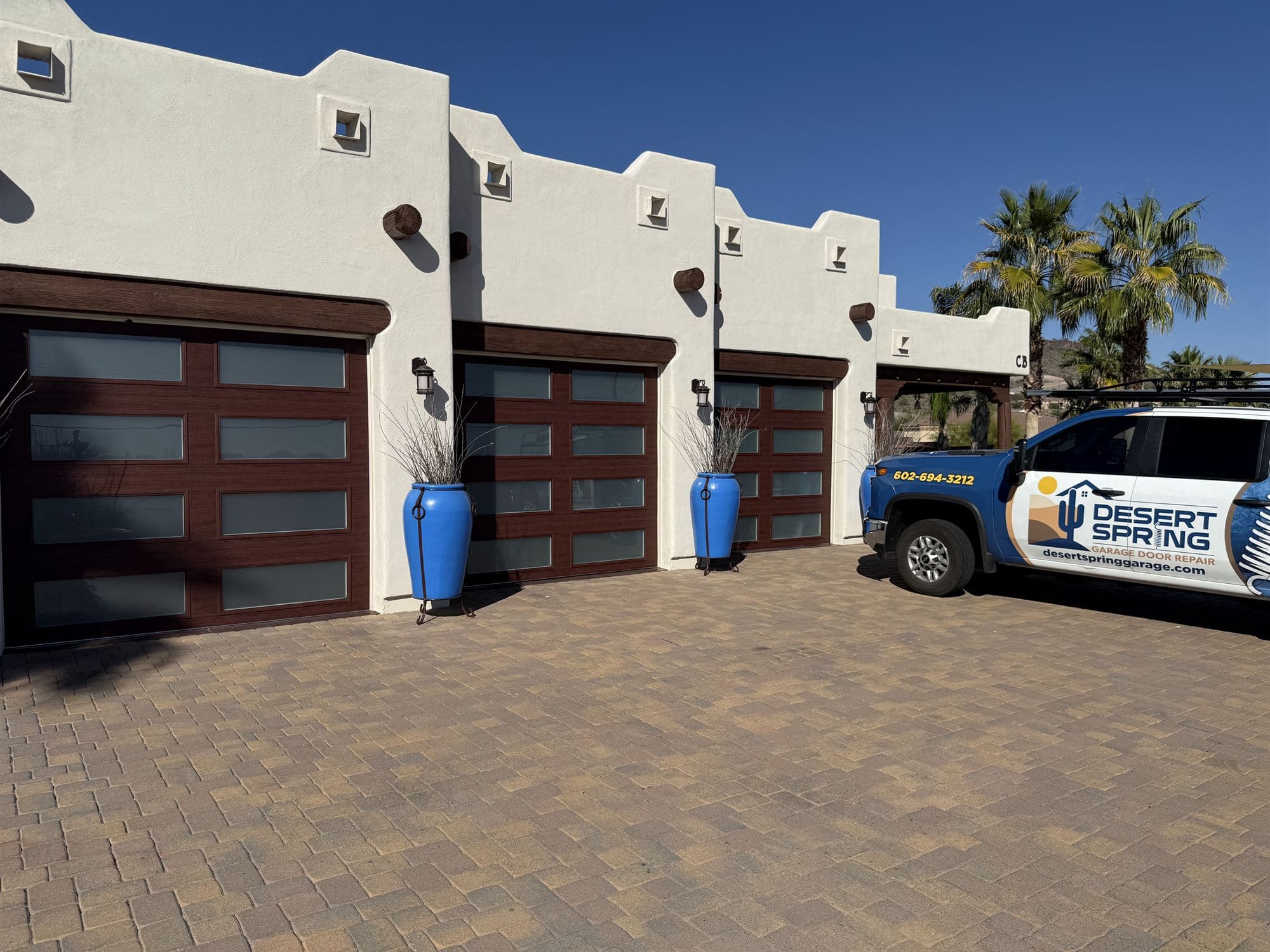

Triple Door Upgrade in the North Valley
Three dated doors on a North Valley estate became sleek high-lift Clopay full-view doors with frosted glass and quiet jackshaft openers — a garage door installation in North Valley, Phoenix that turns heads after dark.
View project to see detailsProject Summary
The Right Spring Size Matters
A properly balanced garage door protects your opener, extends the life of the whole system, and keeps everything running safely. This Phoenix door came in on undersized springs that had already killed one opener — the right-size springs fixed the real problem.
